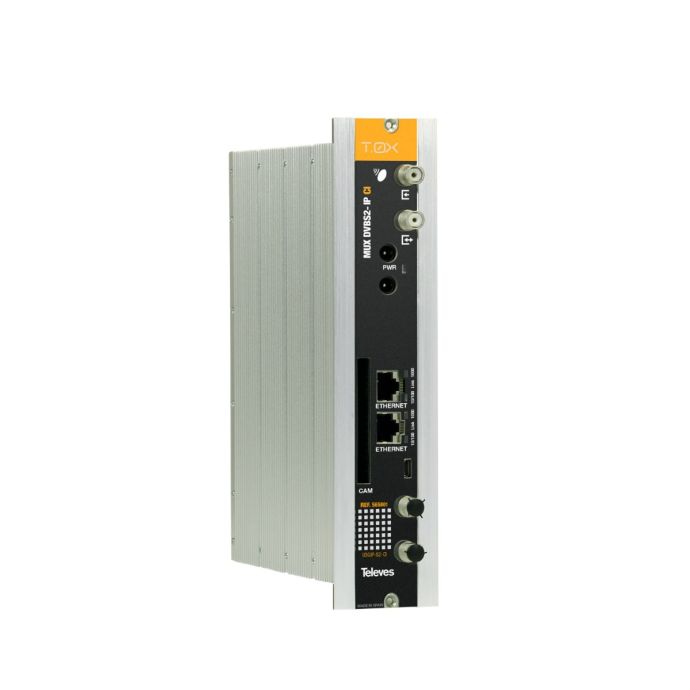

Streamer with DVBS/S2-IP Remultiplexing with Televes CI

SKU
TEL565801
Brands: Televes
€1,334.03
Tax included
Free shipping
(Iberian Peninsula)
Televes
Availability: On request
1 to 7 days

DVBS/S2-IP Remultiplexing Streamer with Televes ICs

Do you need to transform satellite channels into IPTV in a professional way? The Televes 565801 is much more than a simple converter: it is a true remultiplexing streamer, capable of receiving DVB-S or DVB-S2 signals and converting them into IP multicast or unicast streams, facilitating their distribution on Ethernet networks.

Thanks to its CI slot, it allows the insertion of CAM modules to decode encrypted services, making it ideal for hotels, hospitals, residences or educational centers that want to offer a customized grid with premium or local channels without depending on individual decoders.

Its powerful remultiplexing function allows you to create new IP TS, selecting only the services you are interested in from different transponders, optimizing bandwidth usage. In addition, everything is conveniently configured from an intuitive web interface, with remote access for adjustments or updates without having to travel.

Can you imagine a hotel where all the rooms watch the guest's favorite international channel without decoders in every TV set? Or a residence where you can update the TV grid from your laptop without moving a single cable? With the Televes 565801, this is not only possible, it's very easy.

Its intelligent fan only activates when it needs to, even the streamer doesn't want to make extra noise! The device allows you to select multiple services from different MUX to create your own IP TS.

Package contents:

  • 1 × Televes 565801 Streamer.

  • Bracket and hardware for rack or wall mounting

  • Power cable

  • Quick installation manual

Turn your installation into an advanced IPTV system with the 565801, saving costs, space and maintenance. Make your network smarter!

Technical Specifications of the DVBS/S2-IP Remultiplexing Streamer with Televes CI

Input frequency range MHz 950 ... 2150
Symbol rate Mbaud 2 ... 45
Frequency steps MHz 1
Entry level dBm -60 ... -20
Input impedance Oh 75
Losses of passage dB < 1,5
DVB-S2 modulations   8PSK / QPSK
DVB-S modulations   QPSK
Internal FEC   LDPC (9/10, 8/9, 5/6, 4/5, 3/4, 2/3, 3/5, 1/2)
External FEC   BCH (Bose-Chaudhuri-Hockenghem)
Factor de roll-off   20% / 25% / 35%
ROE Min   10.0000
LNB supply voltage Vdc 13 ... 17
LNB request (22KHz)   And
Satellite Selection (DiSEqC)   A / B / C / D
IP output mode   Multicast / Unicast
IP Protocol   IPv4 / DHCP / UDP/RTP
IP streams SPTS   32
Data rate Mbps 150
Service signage   M3U / Pro:Centric / SAP / Tizen
Supply voltage Vdc 24
Max current consumption (Module) m.a. 450
Maximum current consumption (CAM) m.a. 100
Max current consumption (LNB) m.a. 250
Current consumption m.a. 1050
RF connectors   "F" female
Data connector type   RJ-45 Gb Ethernet
Protection index (IP)   20
Operating temperature °C 0 ... 45
More Information
EAN8424450209073
Hight0.000
Length0.000
Width0.000
System SAT2IN - 2OUT
SERIE SATT.0X
Length0.5 meters
ColorSilver
Product BrandTeleves
Write Your Own Review
You're reviewing:Streamer with DVBS/S2-IP Remultiplexing with Televes CI
Your Rating
File Label Size Download
pdf Ficha Técnica Streamer con Remultiplexado 565801 de Televes 329.4 KB Download
