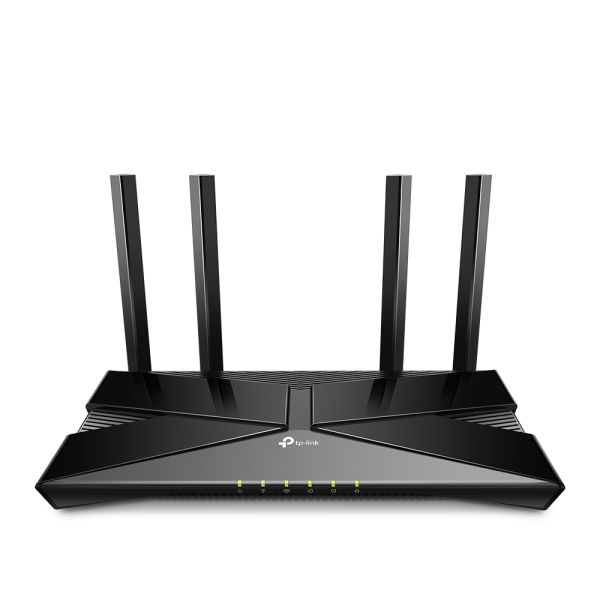

Tp-Link Archer AX3000 Dual Band WiFi6 Router

SKU
TL-ARCHERAX53
Brands: Tplink
Availability: On request
1 to 7 days
€68.47 Tax included
-
+

Tp-Link Archer AX3000 Dual Band Gigabit AX53 WiFi 6 Router

The Archer AX53 router uses dual-band WiFi 6 technology, achieving very fast transmission speeds of up to 3000Mbps. It reaches 2402Mbps on the 5GHz band and 574Mbps on the 2.4GHz band. It has 4 high-gain omnidirectional antennas. These foldable antennas are compatible with beamforming, which focuses the signal towards individual client devices, making your signal stronger and more reliable.

With this device we can connect multiple devices simultaneously, so it is ideal if in addition to our usual devices we have smart home devices that connect via WiFi. OFDMA technology allows several devices to use the same band at the same time, increasing capacity up to 4 times more.

This router works with the 802.11ax standard, which is more than 30% faster than the old 801.11ac (WiFi5) standard, we get higher performance when multiple devices are sharing the network. We thus eliminate signal outages and stable coverage.

The Archer AX53 is equipped with a dual-core CPU. This device is compatible with OneMesh, allowing you to create a unique network with the same name and password, we avoid losing the connection when moving from one room to another.

It has 4 LAN ports that operate at 1Gbps to get the most out of your internet connection and 1 gigabit Ethernet WAN port. The configuration of these routers is very simple, allowing management of multiple functions.

It can be installed on a desk or on a wall. It has a grille for better heat dissipation.

Package Included:

Archer AX53 Wi-Fi Router
Power adapter
RJ45 Ethernet Cable
Quick installation guide

Technical Specifications of the WiFi 6 Archer AX3000 Dual Band Gigabit Router AX53 from Tp-Link

SECURITY
Network Security SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
VPN Server OpenVPN
PPTP VPN
WiFi Encryption WPA
WPA2
WPA3
WPA/WPA2-Enterprise
WIRELESS
Standards Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX3000
5 GHz: 2402 Mbps (802.11ax, HE160)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range 3 Bedroom Houses
4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM
Improves transmission power to strengthen signal coverage
WiFi Capacity High
Dual-Band
Allocate devices to different bands for optimal performance

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

DFS
Access an extra band to reduce congestion

4 Streams
Connect your devices to more bandwidth
Working Modes Router Mode
Access Point Mode
HARDWARE
Processor Dual-Core CPU
Ethernet Ports 1× Gigabit WAN Port
4× Gigabit LAN Ports
Buttons Wi-Fi/WPS Button
Power On/Off Button
LED On/Off Button
Reset Button
Power 12 V ⎓ 2 A
SOFTWARE
Protocols IPv4
IPv6
Service Kits HomeShield
Learn More>
OneMesh™ OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Learn More>
All OneMesh Products>
EasyMesh Mesh networking creates smooth, fast, stable roaming. Archer AX53 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability.
Learn More>
Parental Controls HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service QoS by Device
Cloud Service Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
Port Triggering
DMZ
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
NO-IP
DynDNS
Management Tether App
Webpage
Check Web Emulator>
OTHER
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)
Certifications FCC, CE, RoHS
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power CE:
<20dBm (2.4GHz); <23dBm (5.15GHz~5.35GHz); <30dBm (5.47GHz~5.725GHz)
FCC:
<30dBm (2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz)
WiFi Reception Sensitivity 2.4GHz:
11ac VHT20_MCS0:-96dBm
11ac VHT20_MCS8:-74dB
11ac VHT40_MCS0:-94dBm
11ac VHT40_MCS9:-70dB
11ax HE20_MCS0:-96dBm
11ax HE20_MCS11:-66dBm
11ax HE40_MCS0:-93dBm
11ax HE40_MCS11:-63dBm
5GHz:
11ac VHT20_MCS0:-97dBm
11ac VHT20_MCS8:-75dBm
11ac VHT40_MCS0:-94dBm
11ac VHT40_MCS9:-70dBm
11ac VHT80_MCS0:-91dBm
11ac VHT80_MCS9:-67dBm
11ac VHT160_MCS0:-88dBm
11ac VHT160_MCS9:-63dBm
11ax HE20_MCS0:-97dBm
11ax HE20_MCS11:-66dBm
11ax HE40_MCS0:-94dBm
11ax HE40_MCS11:-63dBm
11ax HE80_MCS0:-91dBm
11ax HE80_MCS11:-61dBm
11ax HE160_MCS0:-87dBm
11ax HE160_MCS11:-58dBm
PHYSICAL
Dimensions (W×D×H) 10.2 × 5.3 × 1.6 in
(260.2 × 135 × 41.6 mm)
Package Contents Wireless Router Archer AX53
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
More Information
EAN 4897098683088
System WIFI6
SERIE 3000Mbps
Color Black
Network Equipment Router
Ports 4
Data Speed Gigabit (10/100/1000Mbps)
PoE No
Product Brand Tplink
