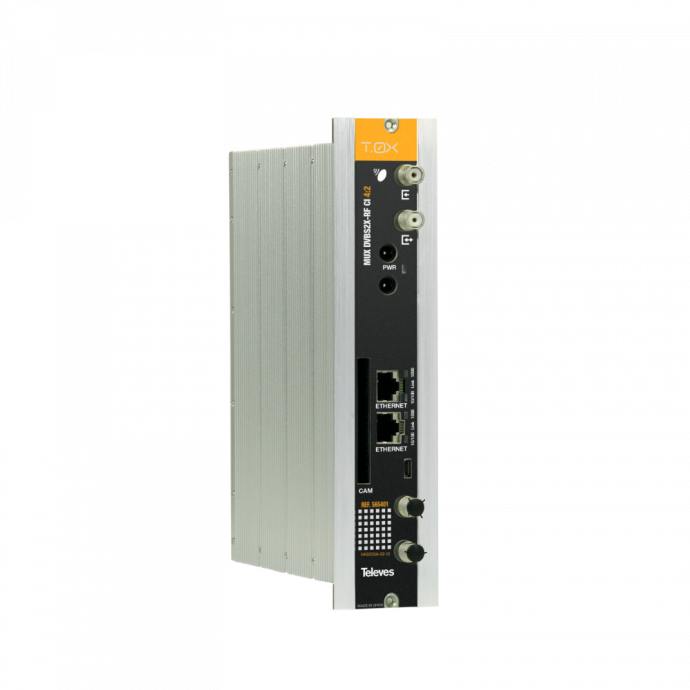

Technical Specifications of the Twin Transmodulator with DVBS/S2-DVBT Remultiplexing 565401 from Televes

This transmodulator generates two COFDM or QAM multiplexes from multiplexing up to 4 different SAT TV transponders, which can be extracted from 2 different polarities of satellites or from a single polarity through the input loop to the headend.

Output modulation selection is performed through an embedded web user interface, allowing configuration of the module.

This new transmodulator makes configuration easier and faster as it includes an embedded web interface, without having to download any type of application. It has a large number of functions such as selecting output modulation, programming the entire headend from this master module, displaying control indicators or cloning configurations between headers.

This web interface can be accessed locally via Ethernet or via a WiFi network from any device. Through the interface, encrypted satellite channels are transformed into terrestrial-free services.

The T.0X series is a modular installation headend system in book format. It is made up of modules, so it is very flexible, since it is the installer who chooses which devices to incorporate within a wide range.
It is designed and manufactured 100% in Televes, it is reliable, compact, fast, complete and ecological, satisfying all the needs of the installation.

Details

Technical Specifications of the Twin Transmodulator with DVBS/S2-DVBT Remultiplexing 565401 from Televes

SAT INPUTS	Input frequency		MHz	270...2320
	Symbol rate		Mbaud	2 - 42,5 (Max 140 Mbps netto bitrate)
	Frequency steps		MHz	1
	Input level		dBm	-60 ... -25
	Input/Output connectors			"F"-female
	Input impedance		Ω	75
	LNB powering		V/KHz	13V/17V/ OFF - 22KHz (ON/OFF)
	dCSS MSW control			SCR II (EN50494/EN50607/SKY UK)
	Satellite selection (DiSEqC)			A,B,C,D
	Through losses		dB	≤ 1,5 typ (2 max)
	Modulation	DVB-S2X		QPSK, 8PSK, 8/16/32 APSK (EN 302307-2)
		DVB-S2		QPSK, 8PSK (EN302307)
		DVB-S		QPSK (EN300421)
	FEC inner code		LDPC	9/10, 8/9, 5/6, 4/5, 3/4, 2/3, 3/5, 1/2
	FEC outer code			Bose-Chaudhuri-Hocquenghem
	Roll-Off factor		%	20,25,35
	R.O.E. inner		dB	10 typ (8 min)
QAM MODULATOR	Modulation format			QAM 16,32,64,128,256
	Symbol rate		Mbaud	2 - 7,5 (select.)
	Roll-Off factor		%	15
	Block code			Reed Solomon (188,204)
	Scrambling			DVB ET300429
	Interleaving			DVB ET300429
	Bandwidth (max.)		MHz	8,3
	Spectral inversion (select.)			Normal/Inverted
COFDM MODULATOR	Modulation format			QPSK,16QAM,64QAM
	Guard interval			1/4, 1/8, 1/16, 1/32
	FEC			1/2, 2/3, 3/4, 5/6, 7/8
	Bandwidth		MHz	6,7,8
	Scrambling			DVB ET300744
	Interleaving			DVB ET300744
	Cell_id			Seleccionable
	Spectral inversion (select.)			Normal/Inverted
RF OUTPUT	Output frequency		MHz	46...862
	Frequency steps		KHz	1
	Max. output level (select.)		dBμV	85±5
	Attenuation (select.)		dB	>15
	Through losses (typ.)		dB	≤ 1,5
	Return losses (typ.)		dB	> 10
	Input/Output connectors			"F"-female
	Ouptut impedance		Ω	75
GENERAL	Control interfaces			Ethernet 10/100/1000 USB 2.0
	Consumptions (@24V)	Base	mA	700
		+ CAM		+ 100
		+ LNB		+ 250/LNB
		Max.		1300
	Max. operating temperature		ºC	45
	Protection index		IP	20

More Information

More Information
EAN	8424450273708
System	DTT & SAT
SERIE	T.0X
Color	Silver
Type	Transmodulator
Input signal	COFDM, QAM
Model / Family	T0X
# Inputs	1
Outputs	1
Common interface	No
Product Brand	Televes
