UAP Splitter 5 Outputs Flange 12dB Ikusi

SKU

IKU2105

Brands: Ikusi

Availability: In stock

Delivery: 24/48 Hours

€12.09 Tax included

UAP Splitter 5 Outputs Flange 12dB Ikusi 2105

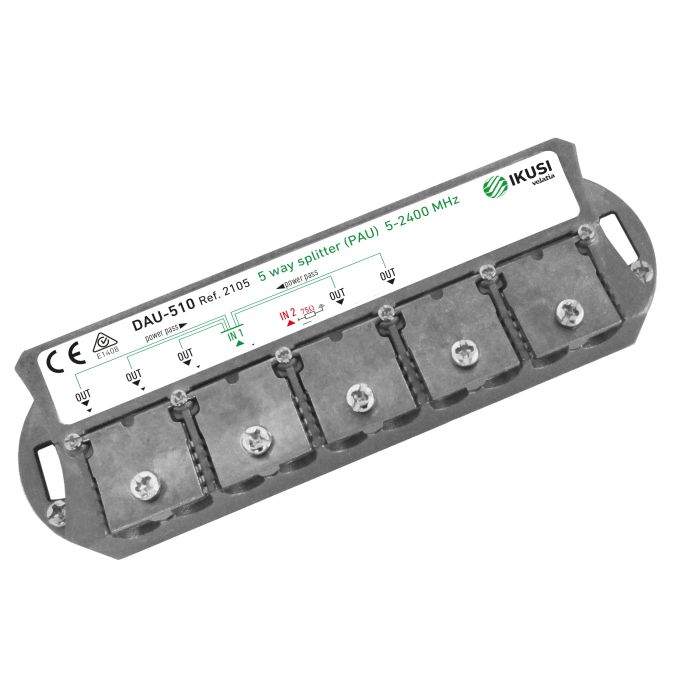

Ikusi DAU-510 splitter UAP with 2 inputs x 5 outputs for DTT-SAT (5-2400 MHz) signal distribution in ICT facilities. Its flange type connection system facilitates its assembly by not using connectors.

A User Access Point acts as a splitter but also has an additional input loaded to connect the second coaxial cable downcomer.

Manufactured with a Zamak box with high shielding and grounding provision.

Details

Technical Specifications of the Ikusi 2105 PAU Delivery Manifold

Model: DAU-510
Reference: 2105
Number of outputs: 5
Frequency range: 5-2400 MHz
Distribution attenuation:

5-862 MHz: 11 dB
950-1550 MHz: 12 dB
1551-2150 MHz: 13.5 dB
2150-2400 MHz: 15 dB

Decoupling between outputs:

5-300 MHz: 28 dB
301-862 MHz: 26 dB
950-2400 MHz: 23 dB

More Information

More Information
EAN	8435136421054
System	DTT & SAT
SERIE	Brida Connector
Color	Gray
TV-SAT Distribution Equipment	UAP
Entorno	Interior
TV-SAT Distribution Connection	Flange
Outputs	5
Insertion Loss (dB)	12
Product Brand	Ikusi
