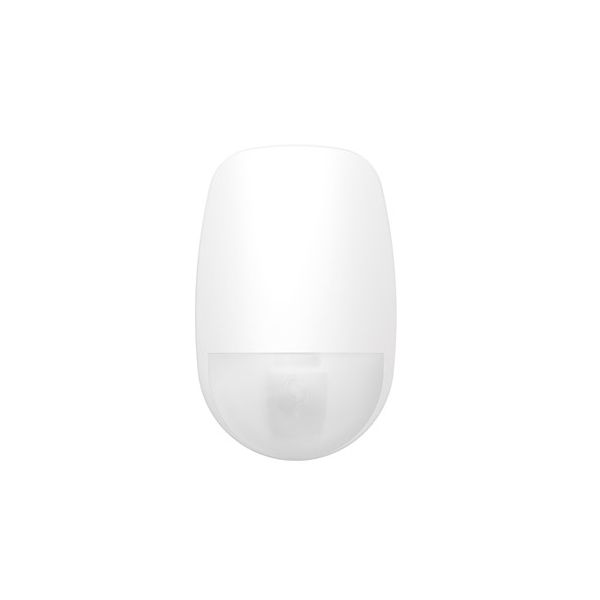

AXPRO 868Mhz Bidirectional Tri-X Wireless Indoor PIR Detector Hikvision
Wireless indoor detector AXPRO 868Mhz Tri-X Hikvision DS-PDP15P-EG2-WE
Wireless PIR detector with bidirectional Tri-X technology, operates at a frequency of 868Mhz. Place this motion detector to avoid intruders, it provides perimeter protection, detecting walls and windows.
It has a range of about 15 meters long with an angle of 85.9º. It does not matter if you have pets, as it has pet immunity. You can also leave the alarm working since it is only necessary to install it at a height of 2.4 to 3.6 meters, as long as your pet weighs less than 30Kg.
It has a radio range of 1600 meters from the control HUB, so its transmissions are very reliable and without interference.
Simple to install, requires a CR123A lithium battery, not included. The battery can last up to 5 years.
Technical specifications of AXPRO 868Mhz Tri-X Wireless Indoor Detector Hikvision DS-PDP15P-EG2-WE
What characteristics does this AXPRO DS-PDP15P-EG2-WE Alarm Center have?
|
Support: |
Wireless alarm systems HIKVISION AX PRO |
|
Battery power supply: |
1 x CR123A 3 V Lithium battery (included) |
|
Battery lifetime: |
~ 5 years |
|
Frequency range: |
868 MHz |
|
Radio communication range (at open area): |
max. 1600 m |
|
Recommended installation height: |
1.8 ... 2.4 m |
|
Detection angle / Detection range: |
15 m / 85.9 ° |
|
Digital temperature compensation: |
|
|
Pet immunity: |
≤ 30 kg |
|
Environment class: |
II |
|
Target speed range: |
0.3 ... 2 m/s |
|
Main features: |
· Digital detector · SEC (Smart Environmental Control) - advanced digital signal processing and 3D optics · Advanced temperature compensation · Tamper protection (detection of removing from mounting surface and enclosure opening) · Bidirectional communication · Compliance with the Tri-X protocol · AES 128-bit data encryption · Frequency hopping against jamming for reliable transmission |
|
Color: |
White |
|
Operation temp: |
-10 °C ... 55 °C |
|
Permissible relative humidity: |
10 % ... 90 % |
|
Weight: |
0.118 kg |
|
Dimensions: |
103 x 66 x 49 mm |
|
Manufacturer / Brand: |
Hikvision |
|
SAP Code: |
314300058 |
|
Guarantee: |
2 years |
| Color | White |
|---|---|
| Automation | PIR Presence Sensor |
| Product Brand | Hikvision |
| Icon | Label | Size | Download |
|---|---|---|---|
|
Ficha técnica DETECTOR INALÁMBRICO PIR INTERIOR AXPRO 868MHZ TRI-X BIDIRECCIONAL HIKVISION | 984.6 KB | Download |
