Wireless Alarm Central AXPRO 868Mhz 64 zones Tri-X Hikvision

Brands: Hikvision
Availability: On request
1 to 7 days
€147.98 Tax included

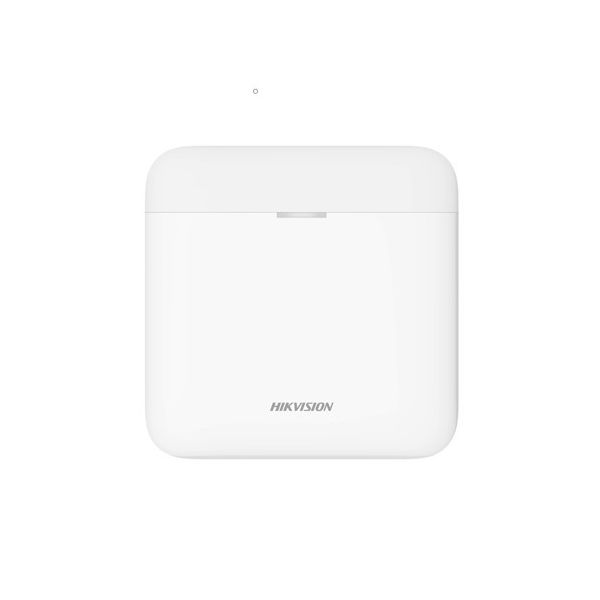

Professional Alarm Center AXPRO 868Mhz 64 zones Tri-X Hikvision DS-PWA64-L-WE

This is the wireless AXPRO control panel that will manage your alarm system in medium or small locations (home, shop, kiosk, urbanization).

Utilizes advanced 2-way Tri-X technology. It is capable of managing up to 64 zones, 2 repeaters, 8 keypads and card readers, 32 cards, 32 key fobs, 16 partitions, 32 users and 4 sirens.

You can connect any PIRCAM camera to it. The panel operates in the 868MHz frequency range. It incorporates 3 connection modules: one WiFi IEEEE 802.11 B/G/N, one LAN 10/100 Mb and a GPRS module (supports push messages, SMS text notifications and audio notifications).

You can manage the control panel anywhere from the palm of your hand through your mobile.

The panel works with bidirectional communication. It also incorporates an indication LED and emergency power supply (up to 12 hours).

Compatible with the EN 50131 @ Grade 2 standard.

Technical specifications of the Professional Alarm Center AXPRO 868Mhz 64 zones Tri-X Hikvision

What characteristics does this AXPRO DS-PWA64-L-WE Alarm Center have?


Number of supported wireless detectors:

max. 64 pcs

Number of supported PIR Cameras:

max. 48 pcs

Number of supported remote control keyfobs:

max. 32 pcs

The RFID cards/keyfobs support:

max. 32 pcs

Number of supported wireless sirens:

max. 4 pcs

Operating frequency range of the wireless devices:

868 MHz

Operating range in open area:

max. 2000 m





Users + admins:

30 + 1 + 1

Keyboard included:


Expander included :


Built-in modules:

· Wi-Fi module IEEE 802.11 b/g/n, 2.4 GHz

· LAN, 10/100Mb

· GPRS module - It supports push messages, SMS text notifications, and audio notifications via the phone

Access from PC:

iVMS-4200 application

Mobile phones support:


Main features:

· Bidirectional communication

· Support for video events via a mobile client and email

· Configuration via the www client, mobile client or software

· Compliance with the SIA-Contact ID protocol

· Compliance with the Tri-X/Cam-X protocol

· LED indication

· Emergency Power Supply : Built-in battery that supports the system for 12h

· Compliance to EN 50131 @ Grade 2 standard

Power supply:

100 V ... 240 V AC (cable included)





Operation temp:

-10 °C ... 55 °C


0.55 kg


170 x 170 x 39 mm

Manufacturer / Brand:


SAP Code:



2 years

More Information
System Tri-X
Color White
Automation Central
Product Brand Hikvision
