Hikvision Simple Wireless Panic Button

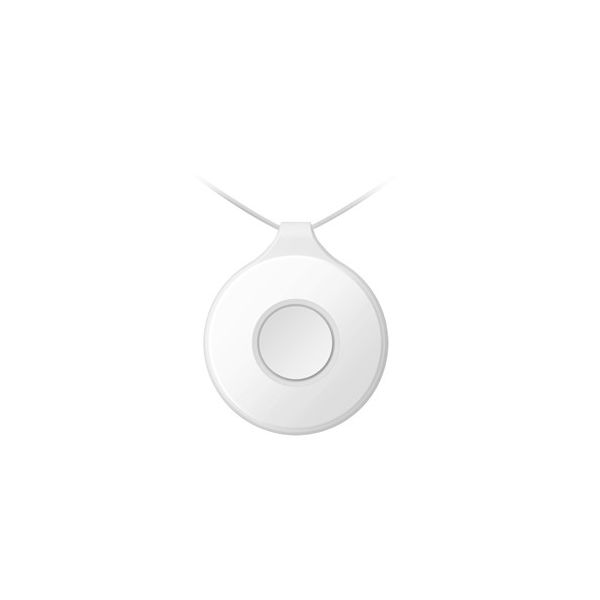

Simple Wireless Panic Button Hikvision DS-PDEB1-EG2-WE
Programmable and wireless button. Very simple configuration through the APP, you just have to scan the QR code for the device to be added to your AXPRO alarm system. The button can be programmed to perform the function that best suits your needs. Ideal for the elderly, children or disabled people, you can carry it on the hook and notify registered users in the system with just one press.
The button tells you the ambient temperature. Totally secure thanks to its AES-128 encryption. It reaches a range in open field of 1Km.
Made of resistant material with IP54 protection level and waterproof. It works at 868 MHz, bidirectional. It contains an LED indicator.
It includes the battery (1xCR2032) that can last up to 3 years.
Technical specifications Simple Wireless Panic Button Hikvision DS-PDEB1-EG2-WE
Characteristic
Button - 1
Tamper Protection - None
Signal Strength Indicator - Support
Interface
LED Indicator - Red / Green
Transmission
Transmission Technology - Tri-X Wireless
Transmission Method - Two-Way RF Wireless
Transmission frequency - 868MHz
Transmission Security - AES-128 Encryption
Transmission Range (Free Space) - 1Km
Frequency Hopping - Support
Enrolling Method - Power up; Remote ID; QR Code
Electrical Characteristics
Standard Battery Life - 3 years in work status (being triggered 20 times per day)
Power supply - Battery Powered
Battery type - CR2035 x 1
Typical Voltage - 3V
General
Operation Temperature - -10 ° C to 55 ° C (14 ° F to 131 ° F)
Storage temperature - -20 ° C to 60 ° C (-4 ° F to 140 ° F)
Operation Humidity - 10% to 90%
IP Rate - IP54
Dimension (WxHxD) - φ38 × 12mm
- 13.5g
| System | Tri-X |
|---|---|
| SERIE | Actuators |
| Color | White |
| Automation | Button / Switch |
| Product Brand | Hikvision |
| Icon | Label | Size | Download |
|---|---|---|---|
|
Ficha técnica Boton Pánico simple HIkvision | 817.5 KB | Download |
