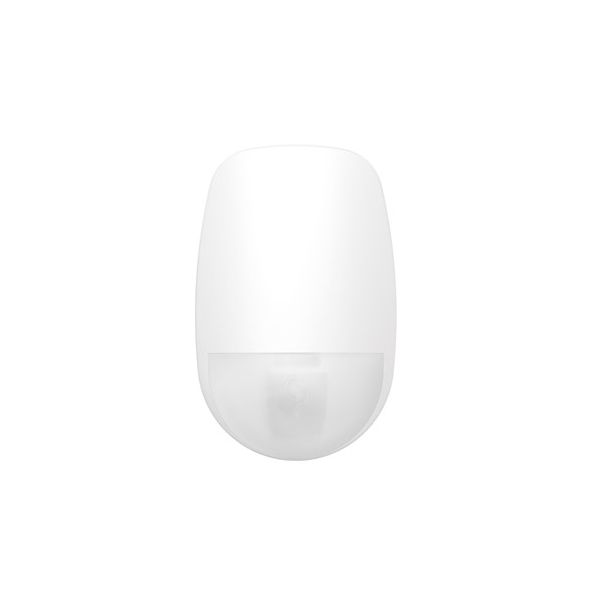

Hikvision Tri-X Bidirectional Wireless Indoor Curtain PIR Detector

SKU
DS-PDC15-EG2-WE
Brands: Hikvision
Availability: In stock
24/48 Hours
€43.37 Tax included
-
+

Hikvision Wireless Bidirectional Indoor Curtain PIR Detector DS-PDC15-EG2

These motion detectors have a long range of up to 15 meters and a narrow angle of up to 6.3º, thus covering surfaces more effectively. The control panel is configured remotely through a simple application. It can detect up to 18 different zones, with movement speeds of 0.3/2 m/s. Ideal for perimeter protection of walls and windows.

It has a 6500 lux light filter and blue LED. This detector is protected against manipulation. It works with a CR123A battery, which can last up to 3 years.



Technical Specifications of Hikvision Wireless Bidirectional Indoor Curtain PIR Detector DS-PDC15-EG2

What characteristics does this PIR detector have?

Support:

Wireless alarm systems HIKVISION AX PRO

Battery power supply:

1 x CR123A 3 V Lithium battery (included)

Battery lifetime:

~ 5 years

Frequency range:

868 MHz

Radio communication range (at open area):

max. 1600 m

Recommended installation height:

2.4 ... 3.6 m

Detection angle / Detection range:

15 m / 6.3 °

Digital temperature compensation:



Pet immunity:



Environment class:

II

Target speed range:

0.3 ... 2 m/s

Main features:

·  Digital detector

·  narrow detection angle

·  Advanced temperature compensation

·  Tamper protection (detection of removing from mounting surface and enclosure opening)

·  Bidirectional communication

·  Compliance with the Tri-X protocol

·  AES 128-bit data encryption

·  Frequency hopping against jamming for reliable transmission

Color:

White

Operation temp:

-10 °C ... 55 °C

Permissible relative humidity:

10 % ... 90 %

Weight:

0.12 kg

Dimensions:

103  x 66  x 49 mm

Manufacturer / Brand:

Hikvision

SAP Code:

314300059

Guarantee:

2 years



More Information
System Tri-X
SERIE PIR
Automation PIR Presence Sensor
Product Brand Hikvision
