Kit to register as an installer type F

Technical Specifications of the Type F Installer Pack

The F installer kit includes everything you need to register as an authorized F type installer.

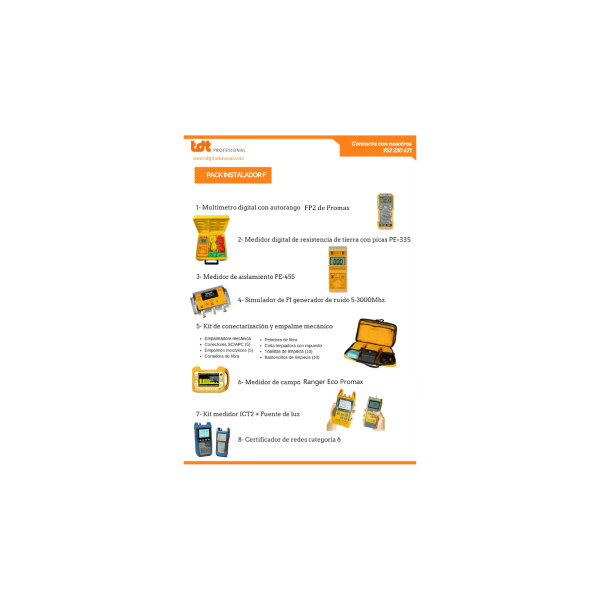

What is included in the kit for type F installers?

• Digital multimeter with autoranging.
• Digital earth resistance meter with stakes.
• PE-455 insulation tester.
• IF simulator noise generator 5-3000 MHz.
• Connectorization and mechanical splice kit.
• Promax Ranger ECO Field Meter
• ICT2 meter kit with light source.
• Category 6 network certifier.

What technical characteristics does the Promax Ranger ECO field meter have?

• It is multi-standard, being fully configurable according to our needs.
• It is compact, robust and lightweight, with total reliability and maximum protection in a lightweight and portable package.
• It has an exclusive double injection rubber casing and plastic polycarbonate that guarantees protection and durability.
• Very compact, which makes it easy to transport and use.
• Measures digital signals DVB-S, DVB-S2, DVB-S2 multistream, DSS, DVB-T and DVB-T2 and analog signals (PAL, NTCS and SECAM), DVB-C, DVB-C2, QAM Annex C. Also Dolby DigitalPlus.

What technical characteristics does the category 6 network simulator have?

• Self-test in the Time and Frequency range.
• Self-test time less than 25 seconds
• Supports a frequency range of 1MHz to 250MHz
• 1000BASE-T Ethernet Support
• Type of cables
• With or without shielding
• TIA / EIA-568-B: CAT3, CAT5e and CAT6
• ISO / IEC 11801 and EN50173: Class C, D and E
• Telephone
• COAX
• Tests supported
• Cable length
• Wire Map: Identifies defects in wiring, short circuits, openings, inversions and split pairs, as well as the distance to the short circuit or open circuit.
• Loss of Return.
• Insertion Loss (Attenuation)
• NEXT
• Skew (propagation delay)
• BER Tes
• Ping
• Standards
• TIA / EIA-568-B
• ISO / IEC 11801
• EN50173
• IEEE802.3 10BASE-T, 100BASE-TX, 1000BASE-T
