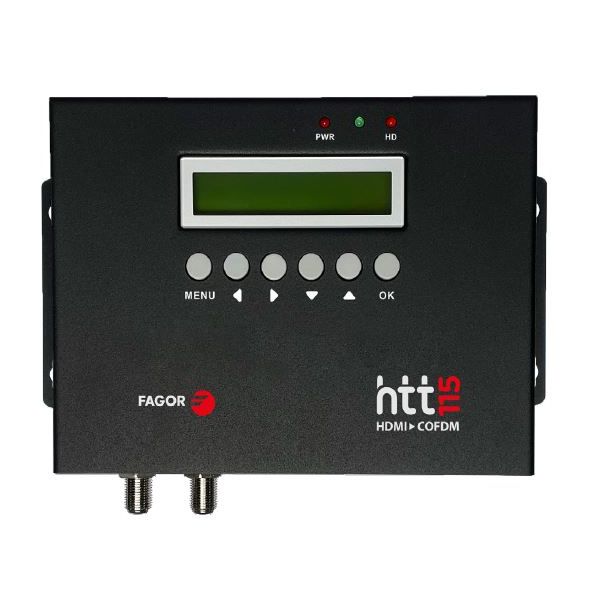

HDMI-COFDM digital modulator RF HTT 115 of Fagor

SKU
FAG86547
Brands: Fagor
Availability: On request
1 to 7 days
Free shipping
(Iberian Peninsula)
€171.77 Tax included
-
+

HDMI signal digital modulator with RF output. Output channels 5-12. COFDM modulation.

With this modulator you can carry the signal of your receiver with the HDMI output to see it in the rest of the house. The device modulates audio and video signals HDMI to RF signals. You can carry the image signal from the decoder or DTT to the rest of the television through the coaxial cable. They are used inside the house.

Modulate the HDMI SELA with a 1080P and 4K resolution. The LOOP output proposes the same resolution as at the entrance. It has a mero greater than 35db.

Its use is very simple thanks to its intuitive and fast menu, easily adjusting the parameters by channel buttons, attenuation and programming HD.

Technical specifications of the HDMI-COFDM digital modulator Output HTT 115 of FAGOR



MODELO HTT 115
Referencia 86547
CODIFICACIÓN DE VÍDEO H.264
Entradas HDMI x 1 + RF
Resolución 1920*1080_60P; 1920*1080_50P;
1920*1080_60i; 1920*1080_50i;
1280*720_60p; 1280*720_50P
CODIFICACIÓN DE AUDIO MPEG1 layer II
ESTÁNDAR DE MODULACIÓN EN300744
Modos FFT 2K, 8K
Banda pasante MHz 6, 7, 8
Constelación QPSK, 16 QAM, 64 QAM
Intervalo de guarda 1/4, 1/8, 1/16, 1/32
FEC 1/2, 2/3, 3/4, 5/6, 7/8
MER dB >35
Frecuencia RF MHz 50 ÷ 860
Nivel de salida RF dBμV 70 ÷ 100, step 1dBµV
Programaciones LCD + teclas de programación
Alimentación 12V / 1,5A
Dimensiones embalaje mm 150 × 110 × 32
Peso Kg 0,5
More Information
EAN 8432589865473
Sistema Digital
Video Outputs HDMI
Product Brand Fagor
Write Your Own Review
You're reviewing:HDMI-COFDM digital modulator RF HTT 115 of Fagor
Your Rating
File Label Size Download
pdf Ficha Técnica Modulador Digital HDMI-COFDM Salida RF HTT 115 de Fagor 180.4 KB Download
